SOHO XPS Underfloor Tile Backer Heating Insulation Boards are designed to provide exceptional thermal insulation and stability for underfloor heating systems. Manufactured with advanced Low Internal Stress Technology, these boards ensure superior durability, excellent heat retention, and long-lasting performance.
Made from extruded polystyrene (XPS), SOHO XPS boards are highly effective in minimizing heat loss and improving energy efficiency. Their flame retardant ratings (B1, B2) ensure safety, while the closed-cell structure enhances strength and moisture resistance.
| Brand | SOHO |
| Product | XPS Underfloor Tile Backer Heating Insulation Boards |
| Material | XPS |
| Thickness (mm) | 30, 35, 40, 50 |
| Length (mm) | 1200, 2400 |
| Width (mm) | 60 |
| Customizable | Yes, tailored to specific requirements |
| Flame Retardant Rating | B1, B2 |
| Compressive Strength (Kpa) | 200, 350, 500, 700, 1000 |
| Water Absorption | ≤1% (v/v) |
| Thermal Conductivity | ≤0.03 W/(m·K) |
| Surface Finish | Aluminum, Foil, Cut, Peel, with Skin |

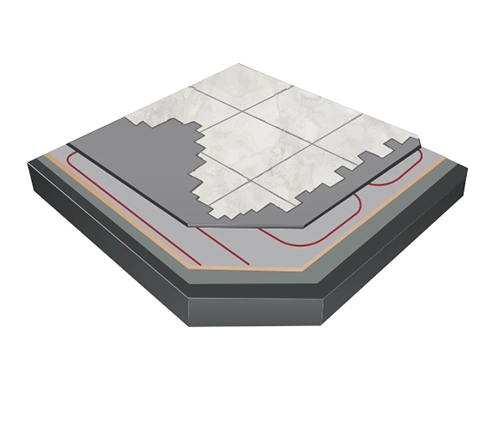

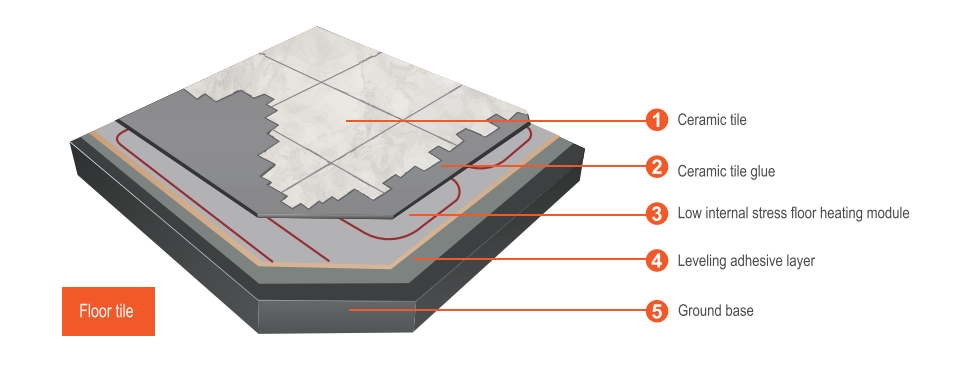

Prepare the Subfloor: Ensure the subfloor is clean, dry, and level. Remove any debris or dust to create a stable foundation for the installation.
Apply Leveling Adhesive Layer: If the subfloor is uneven, apply a leveling adhesive layer to create a smooth, flat surface. This layer ensures better adhesion of the insulation boards and improves overall stability.

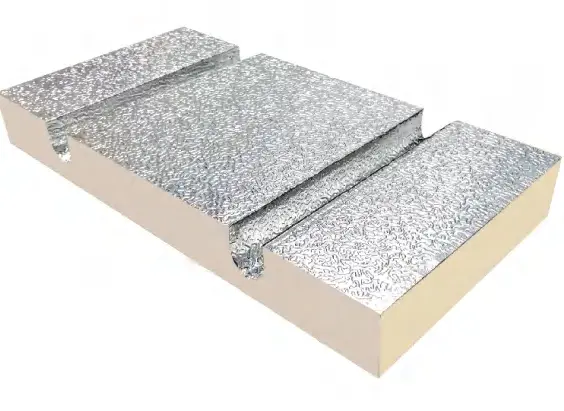

Lay the XPS Insulation Boards: Start in a corner and place the SOHO Ω grooved XPS under tile insulation board with the grooved side facing up. Align the boards edge-to-edge, trimming them as needed to fit around edges, corners, and obstacles.

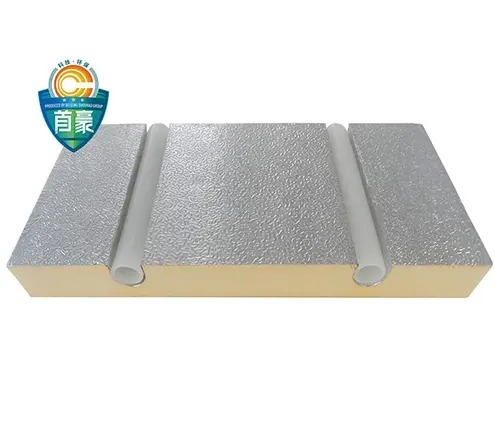

Install Heating Pipes: Carefully place the heating pipes into the grooves of the XPS boards, ensuring proper spacing for efficient heat distribution.
Secure the Boards: Apply adhesive or use fasteners to secure the XPS Extruded Polystyrene boards to the subfloor. Press down firmly to eliminate any gaps or air pockets.
Check Level: Use a spirit level to ensure the boards are installed evenly across the surface. This ensures a stable base for the next layers.
Apply Tile Adhesive: Spread a layer of tile adhesive over the XPS under the tile insulation board, ensuring even coverage for the tiles to adhere properly.
Lay the Tiles: Begin laying the tiles on top of the adhesive layer, leaving appropriate expansion gaps along the edges. Press tiles firmly into place and ensure they are level.
Test Heating System: Test the system before completing the installation to ensure proper functioning.
1. Retains heat, improving energy efficiency for underfloor heating systems.
2. High compressive strength ensures long-lasting performance under heavy loads.
3. Closed-cell structure prevents water absorption, ideal for wet areas.
4. Flame retardant (B1, B2 rating) for enhanced fire safety.
5. Grooved design simplifies pipe placement, reducing installation time.
6. Fluorine-free and bromine-free for a sustainable solution.
7. Reduces noise transmission, ideal for multi-level buildings.
8. Suitable for various flooring materials, including tiles.
9. Available in different sizes and thicknesses to fit specific needs.
10. Energy-efficient and long-lasting, reducing long-term costs.

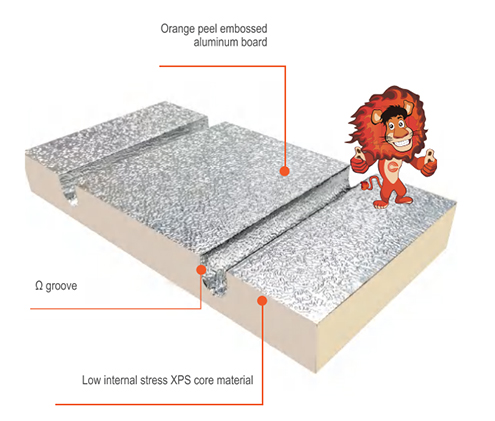

High-Strength XPS Core: Offers superior thermal insulation and durability, ensuring long-term performance and energy efficiency.
Orange Peel Embossed Aluminum Heat-Spread Surface Layer: Enhances heat distribution, improving the overall performance of underfloor heating systems.
Grooved Design: Pre-set grooves for precise placement of heating pipes, ensuring optimal heat flow and efficiency.

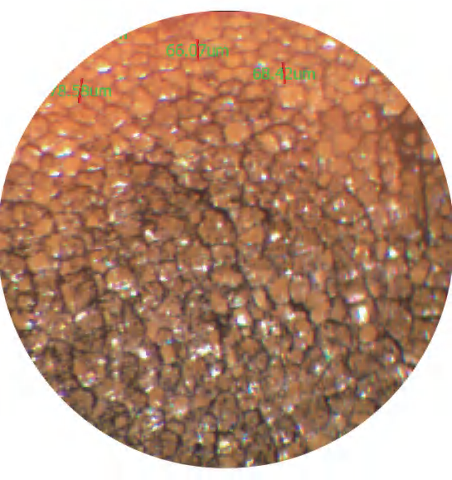

Even & High-Quality Foaming Cells: The boards feature uniformly distributed foam cells, ensuring consistent insulation performance across the entire surface.
Closed-Cell Structure: With more than 99% closed-cell foam, the boards offer superior moisture resistance, high compressive strength, and excellent thermal insulation.
If you want to know more about our products, please leave a message or give us a call and we will get back to you as soon as possible.
