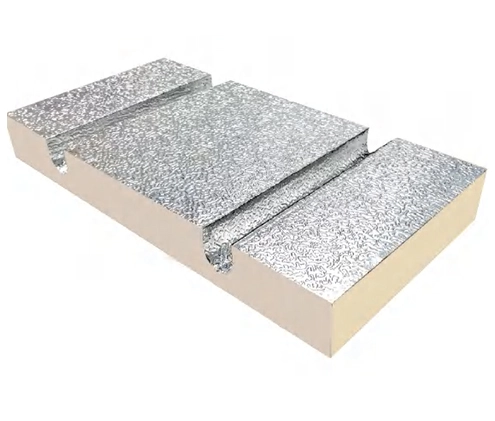

SOHO 40mm Underfloor Heating Thermal Insulation Boards are advanced thermal insulation solutions designed to enhance the performance and efficiency of underfloor heating (UFH) systems.
Our 40mm underfloor overlay heating boards offer superior thermal resistance, ensuring minimal heat loss and optimized energy usage for both residential and commercial applications.

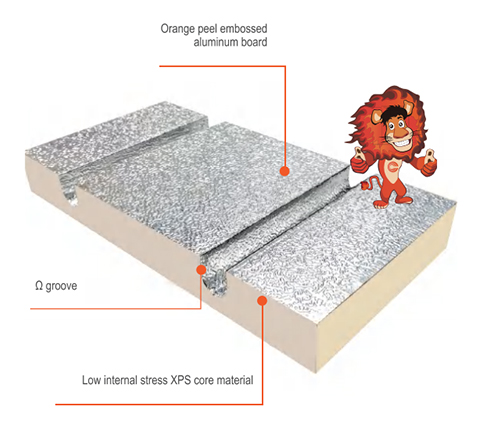

SOHO 40mm boards also feature easy installation with precise grooves for secure pipe placement, making them an essential component in any underfloor heating setup.
| Brand | SOHO |
| Product | 40mm Underfloor Heating Thermal Insulation Boards |
| Material | XPS |
| Thickness(mm) | 40 |
| Length(mm) | 1200 |
| 2400 | |
| Breadth(mm) | 60 |
| *The products are customizable to meet your requirements. | |
| Flame retardant rating | B1, B2 |
| Compressive strength Kpa | 200 |
| 350 | |
| 500 | |
| 700 | |
| 1000 | |
| water absorption | ≤1%（v/v） |
| Thermal conductivity index | ≤0.03%w（mk） |
| Surface | Aluminum; Foil; Cut; Peel; With skin |
Excellent Thermal Conductivity: Ensures efficient heat distribution, enhancing the performance of underfloor heating systems.
High Compressive Strength: Provides long-term durability, making it suitable for various flooring applications.
Low Water Absorption: Minimizes the risk of deterioration and ensures stability over time.
Flame Retardant Ratings: B1 and B2 flame retardant ratings offer enhanced safety and compliance with building standards.
Customizable Sizes and Finishes: Tailor the product to your specific project needs, including thickness, compressive strength, and surface finish.
Low Profile Design: Ensures a smooth, seamless installation process with no need for double-plating.
No Cracking or Leveling: Designed to prevent cracking or leveling issues, ensuring a durable and stable base for flooring.
Higher Efficiency and Faster Response Time: Accelerates the heating process for greater energy efficiency.
Superior Performance: Ensures optimal heating results with minimal energy waste.
Zero Formaldehyde: Safe for indoor environments, contributing to healthier living and working spaces.
Sustainable Substrate: Eco-friendly materials provide a greener solution for modern construction projects.
Lightweight: Easy to handle and install, reducing labor costs and time.
Flooring Goods Friendly: Compatible with a wide range of flooring options, making it the perfect choice for various applications.

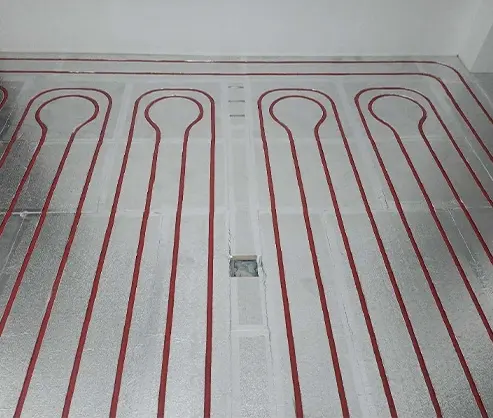

1. Underfloor heating systems;
2. Residential and commercial flooring installations;
3. Energy-efficient construction projects;
4. Renovations and retrofitting;

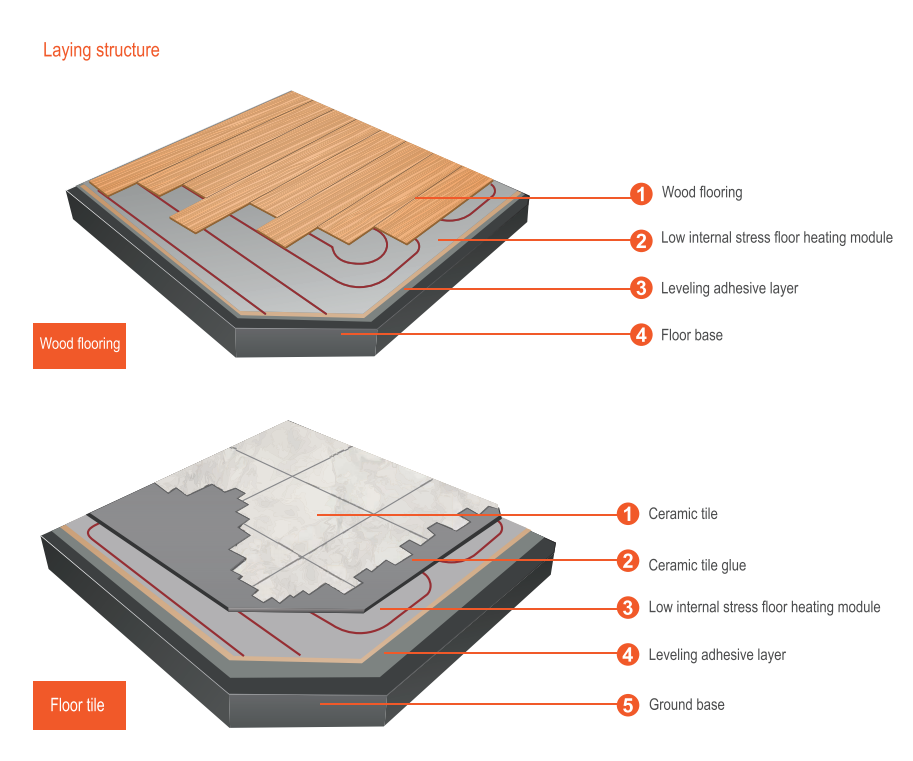

As a professional manufacturer of extruded polystyrene thermal insulation board, SOHO Group provides high-quality XPS grooved UFH insulation panels, which are suitable for wooden floor and tile floor heating systems.
If you want to know more about our products, please leave a message or give us a call and we will get back to you as soon as possible.
