As a professional manufacturer of electric underfloor heating boards, SOHO Group offers XPS insulation panels for electric underfloor heating systems. Our XPS electric underfloor heating insulation boards are designed with our patented Low Internal Stress Technology, ensuring durability, stability, and long-term performance. Our electric underfloor insulation board module is made from high-strength, fluoride-free, bromine-free XPS insulation board, developed by the company, with a special soaking layer attached to the surface.

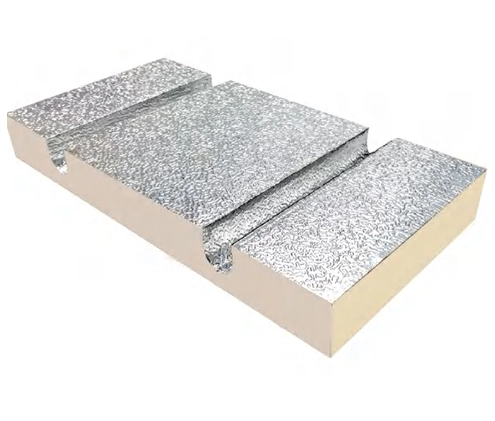

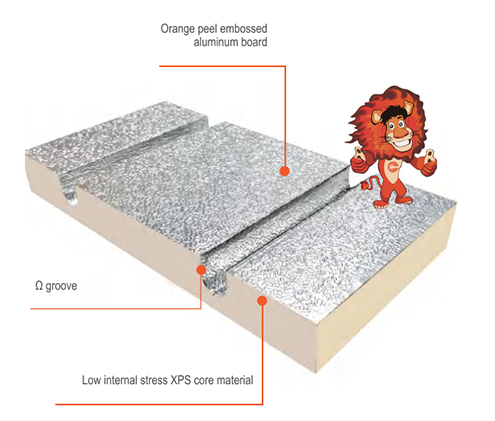

Prefabricated in the factory based on detailed design plans, the module is assembled on-site. Its surface features pre-cut Ω grooves with fixed spacing, specifically designed for easy and accurate placement of heating pipes. Our insulation panel is suitable for dry underfloor heating systems. Available in various thicknesses, our XPS electric underfloor heating boards are ideal for floor coverings like tiles and wood flooring.
| Brand | SOHO |
| Product | XPS Electric Underfloor Heating Boards |
| Material | XPS |
| Thickness (mm) | 30, 35, 40, 50 |
| Length (mm) | 1200, 2400 |
| Width (mm) | 60 |
| Customizable | Yes, tailored to specific project requirements |
| Flame Retardant Rating | B1, B2 |
| Compressive strength Kpa | 200 |
| 350 | |
| 500 | |
| 700 | |
| 1000 | |
| Water Absorption | ≤1% (v/v) |
| Thermal Conductivity | ≤0.03 W/(m·K) |
| Surface Finish | Aluminum, Foil, Cut, Peel, with Skin |
| *Our electric underfloor heating insulation boards are customizable to meet your requirements. | |
1. Underfloor heating XPS insulation board features superior thermal insulation, and low heat conductivity.
2. Pre-cut Ω grooved design for easy installation.
3. Meets B1/B2 flame retardant standards for safety in all environments.
4. Moisture resistance, ensuring low water absorption, perfect for high-moisture areas.
5. Durability, high compressive strength (over 1000 KPa).
6. Eco-friendly, SGS-certified, fluorine-free, and bromine-free.
7. Dimensional stability, and long-lasting reliability.
SOHO, as a leading manufacturer and supplier of electric underfloor heating boards in China, provides high-quality underfloor heating overlay boards for electric dry underfloor heating systems. Our underfloor electric heating insulation boards can be used as under tile insulation boards and underfloor heating wooden floor boards. If you have any requirements, don't hesitate to contact us!
If you want to know more about our products, please leave a message or give us a call and we will get back to you as soon as possible.
