Prospect of SOHO Structural Insulated Panel

Doing the trend is doing the future, building insulation and structural integration is the development trend of the building energy-saving insulation industry.In 2016, the General Office of the State Council "on the promotion of building materials industry steady growth, adjusting the structure and increasing the efficiency of the guiding opinions" clearly put forward the development of intrinsically safe, energy-saving and environmentally friendly, lightweight and high-strength insulated wall panels and roof materials, and exterior wall insulation materials. This points out the direction for the development of the industry.

Residential industrialization, finished building components and assemblable are the mainstream ways of house building construction in developed countries. Building thermal insulation and structural integration in the protection of residents' lives and property safety, in line with the development trend of building components production of finished products, on-site construction assembly, its building thermal insulation and structural integration of the construction mode represents the industry's leading solutions, is the building energy-saving thermal insulation industry towards the direction of the emerging industrialization road, the development prospects are good, and the market potential is huge.

The corresponding structural insulated panels (SIP) have passed CE certification.

Types of Structural Insulated Panel

SIP Panels (Built-in)

It is a kind of built-in steel wire mesh and heat preservation board connected with each other as a heat preservation layer, and the integrated heat preservation composite wall formed by pouring concrete on both sides. It is divided into built-in steel wire mesh concave composite shear wall and built-in steel wire mesh concave composite filler wall according to the different ways of structural stress.



SIP Panels (External)

The shear wall structure system is a technically reliable building system proven in the market for many years, which is a complete set of technical system from system structure, performance requirements, design structure to construction acceptance, realizing the integration of wall and structure thermal insulation. It realizes the integration of wall and structure heat preservation, and was appraised as "domestic leading level" by the Ministry of Construction's scientific and technological achievements in 2017.



Construction Processes of SOHO SIP Panels (External)

Low internal stress type composite heat preservation template → spring line → cutting → installing connectors → tying reinforcement and pads and acceptance → setting up low internal stress type composite heat preservation template → setting up the inner template → putting on the tensile bolts → setting up the template wooden square sub-flute → setting up the template double-steel pipe main flute → adjusting and fixing the position of the template → pouring concrete → dismantling of the inner template and the main and sub-flutes → masonry self-preservation masonry block masonry → anticracking treatment for the splicing joints and the corners of the yin and yang → integration Insulation template special mortar leveling layer construction → anti-cracking mortar plastering layer construction → finishing layer construction.

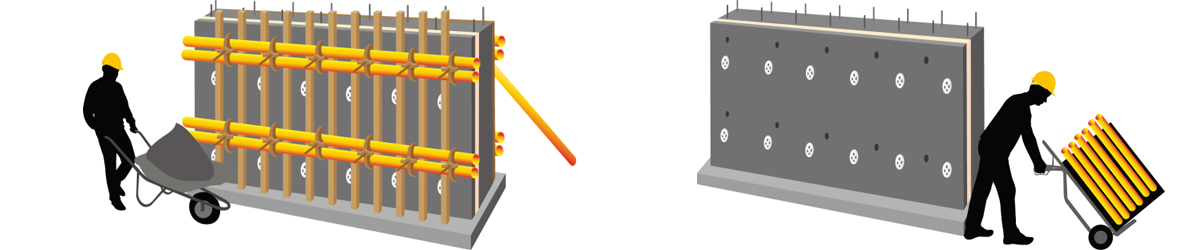

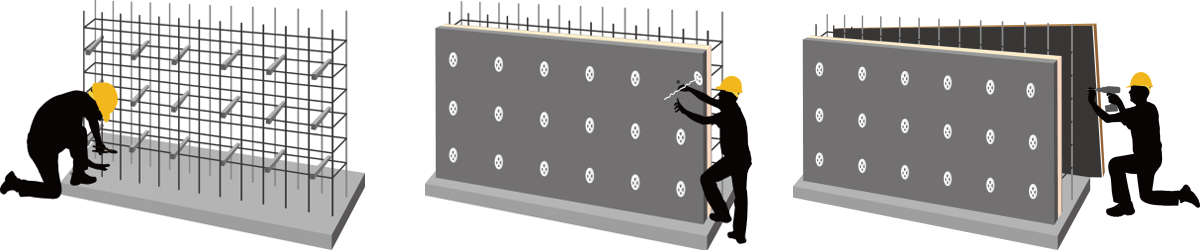

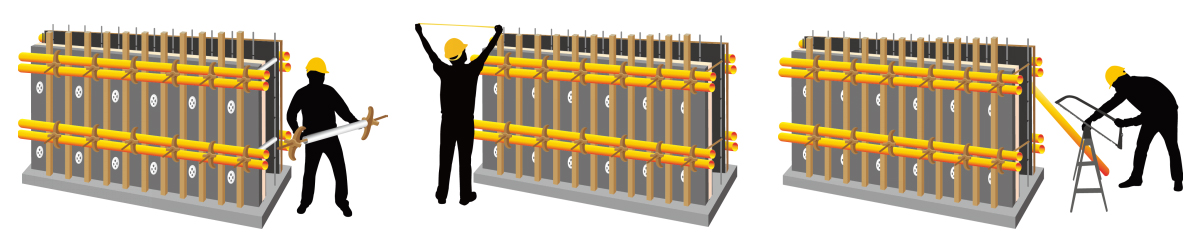

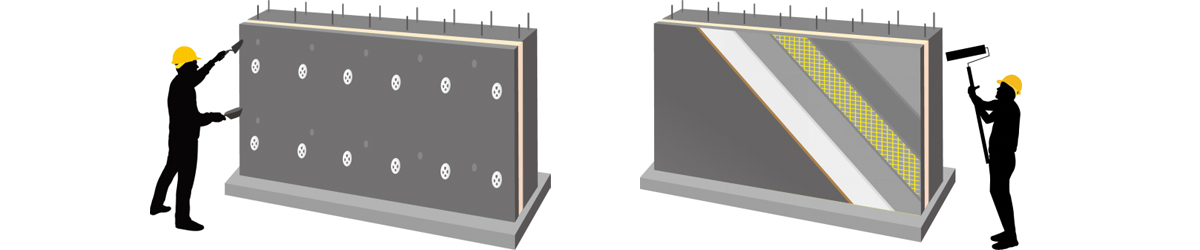

Construction Processes of SIP Panels (External)

Construction Processes of SOHO SIP Panels (Built-in)

Binding wall reinforcement and pads → installing concave steel wire mesh insulation board and fixing → installing additional welded wire mesh → installing connectors and fixing wall reinforcement → erecting outer wall formwork → supporting inner wall formwork → threading wall tensile bolts → pouring wall concrete → concrete curing → dismantling wall formwork → blocking holes for tensile bolts → setting up anti-cracking guide joints → treatment of thermal bridges → construction of finishing layer.

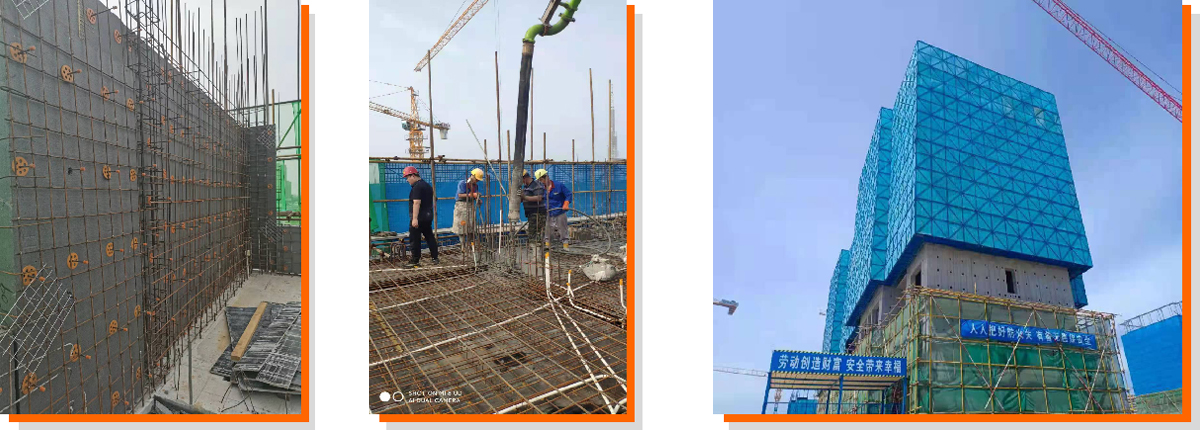

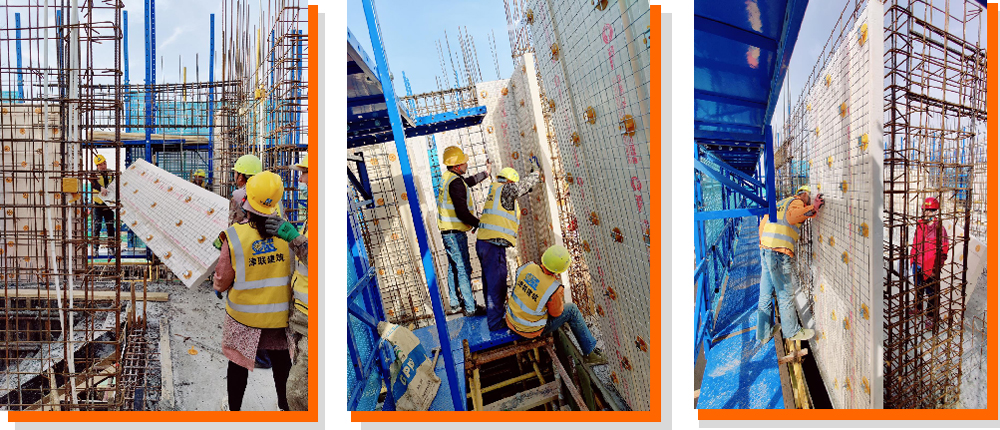

Construction Processes of SIP Panels(Built-in)

Production Process of SOHO SIP Panels (External)

SOHO low internal stress type composite heat preservation formwork production line adopts automatic production line, the whole process of computerized automatic control, with reasonable structural design, accurate measurement, stable product quality, production capacity and high efficiency.

Cutting and Shaping of Heat Preservation Core Material

Cut the heat preservation core material and trim the size to reach the permissible deviation of size.

Open the Groove

The insulation core material will be opened on both sides of the diamond-shaped groove.

Spraying Interface Agent

In order to increase the bonding strength of the insulation core material and inorganic surface layer, spray interface agent on both sides of the insulation core material, and let it dry for use.

Laying the Inner Bonding Layer

The insulation core material placed on the production line, laying a layer of alkali-resistant fiberglass mesh cloth, in laying polymer cracking mortar.

Maintenance

Send the single panel produced in step 4 into the maintenance workshop for 1-2 days.

Laying Bonding Layer

The maintenance of a good single-panel flip, groove were facing up, laying polymer bonding mortar.

Laying Heat Preservation Strengthening Layer

In the bonding layer above the laying of heat preservation strengthening layer (lightweight mortar) pressed a layer of alkali-resistant glass fiber mesh cloth.

Laying Bonding Mortar Layer

Laying polymer cracking mortar on top of the thermal insulation strengthening layer (lightweight mortar), pressed into a layer of alkali-resistant glass fiber mesh cloth.

Maintenance

The production of completed ff composite insulation template together with the mold frame into the maintenance workshop, maintenance 3-5 days, and then natural maintenance 25 days factory.

Main production process.

Production Process of SOHO SIP Panels (Built-in)

Built-in steel wire mesh concave composite panel system is a patented product of SOHO Group, which is optimized and innovated on the basis of low internal stress composite heat preservation panel.

Cutting and gluing according to the size of drawing

Install the main body limit parts

Install the limit iron card

Positioning of plate and connecting mesh combination

Combined molding of plate and connecting piece mesh

Installation of anchoring nails

Low internal stress type composite insulation board is more in line with the requirements of energy saving and industrialization of construction, can be standardized production throughout the time limit, is the latest type of building insulation and institutional integration products.

Advantages of SOHO Structural Insulated Panel

Energy-saving

Composite insulation, the use of traditional insulation materials can meet 75% energy-saving design standards, and can ensure that the building life of the thermal insulation performance does not decay.

Fire-resistant

Outside the pouring of 50mm concrete protective layer, improve the integrity of the components of the high temperature state, stability and load-bearing capacity, tested its fire-resistant limit of more than 4h.

Anti-seismic

The concrete is poured with the building wall structure, completely in contact with the concrete, increasing the stability of the wall, improving the ultimate load-bearing capacity of the wall, and reliable anti-seismic performance.

Durability

Thermal insulation layer hidden in the building structure, completely solved the common problem of cracking and falling off of the external wall insulation system, thermal insulation and building structure with the same life expectancy, the real realization of the integration of building thermal insulation and structure.

Environmental protection

Reduce the construction process of construction waste, but also reduce the repeated investment and pollution due to multiple replacement of the insulation system. Applied in the construction of new rural areas, instead of clay bricks, can reduce the destruction of land resources, in the whole life cycle of the building to the community to bring immeasurable contribution.
