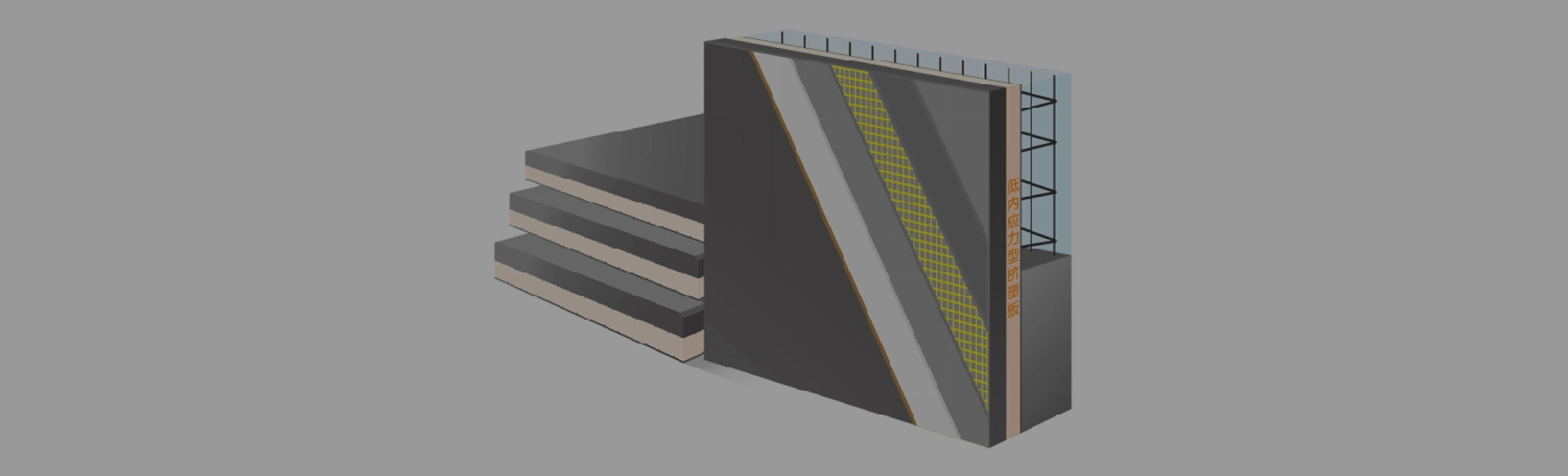

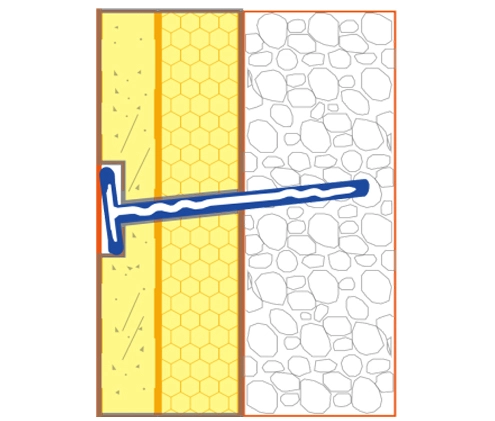

SIP panels (external) is a patented product of Beijing SOHO Group (Patent No.: 201510125773.7). With 45-100mm extruded plastic board, graphite extruded plastic board as the core material of heat preservation, the inner 3mm polymer anti-cracking mortar pressed alkali-resistant fiberglass mesh; the outer 3mm polymer anti-cracking mortar pressed alkali-resistant fiberglass mesh + 44mm lightweight mortar + 3mm polymer anti-cracking mortar pressed alkali-resistant fiberglass mesh to level the board products with heat preservation and template functions, prefabricated in the factory. Main material of the structural insulated panel system as the exterior wall is XPS foam or EPS foam and ALC/AAC panel.
| Item | Performance Requirements | |
| Mass per unit area (Kg/㎡) | 35~45 | |
| Impact strength grade | Walls, doors and windows on the first floor of the building | |
| Collision-susceptible parts: Class 10J | ||
| Second floor and above: Class 3J | ||
| Bending load resistance (N) | Not less than the self-weight of the plate | |
| Tensile bonding strength （MPa） | Original Strength | ≥0.10，All damage surfaces should occur in the insulation |
| Water Resistance | ≥0.10 | |
| Freeze-thaw strength | ≥0.10 | |
| Water vapor transmission properties 【g/(㎡·h】 | organic material | Water vapor transmission rate of the protective layer≥0.85 |
| Moisture deformation（%） | ≤0.07 | |
| Water absorption（g/㎡） | ≤500 | |
| Impermeability | No penetration on the inside of the protective layer | |
In the same energy-saving standards under the conditions of low cost, especially after the implementation of the new fire code, integrated thermal insulation technology is the most mature, the lowest cost of building thermal insulation and structural integration technology.
Synchronized construction with the structure, the same life with the building wall, without the need for late maintenance, solving a series of problems such as short life of the external insulation technology, cracking, falling off the need for repair and replacement.
The core material used is non-fluorine, non-bromine, low internal stress type extruded plastic board, graphite extruded plastic board, graphite polystyrene board, with lower coefficient of thermal conductivity, and applied in the building, the wall is relatively thinner and lighter, which can increase the actual area of use by 5% to 10%, and reduce the load on the foundation and foundation. It can reduce the load on foundation and foundation.
Customized processing according to the design requirements of the drawings, mechanized production, can ensure the stability of product quality, synchronous construction with the main body of the project, saving the traditional external wall insulation process, shorten the construction period.
The outer layer of high flatness, do not need to do too complex reinforcement of the insulation wall leveling treatment, to meet a variety of surface decorative fast installation.
Looking for high-quality exterior insulation options? Look no further than our range of products, which includes external insulation board, external wall insulation blocks, and external wall insulation boards. With options like external wall insulation sheets and external wall insulation panels, our products offer superior thermal properties for maximum energy efficiency. Choose from insulated external wall panels or insulated wall panels exterior for hassle-free installation. Plus, exterior rigid insulation board and exterior rigid foam insulation options ensure maximum efficiency and durability. Whether you're using foam board for exterior walls or foam board insulation for exterior walls, we have the products you need at competitive prices. From outside wall insulation panels to external roof insulation board, consider us your go-to source for all your exterior insulation needs.
If you want to know more about our products, please leave a message or give us a call and we will get back to you as soon as possible.
