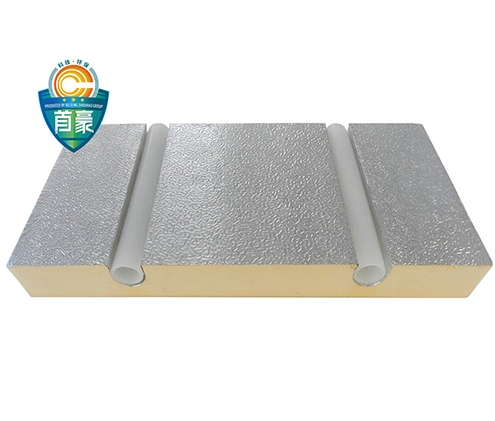

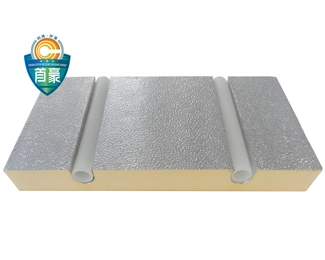

Dry floor heating module with low internal stress is a proprietary product of Beijing SOHO Group.

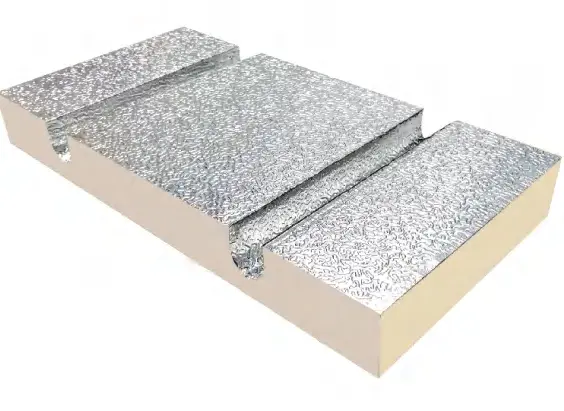

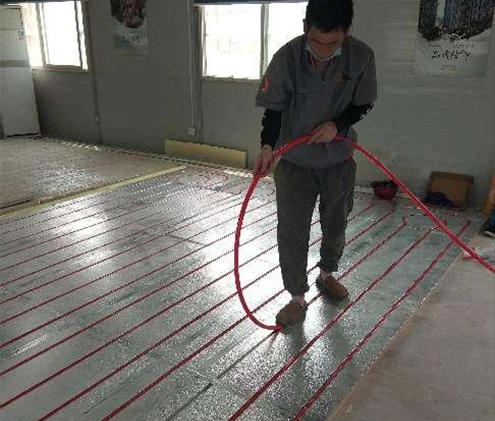

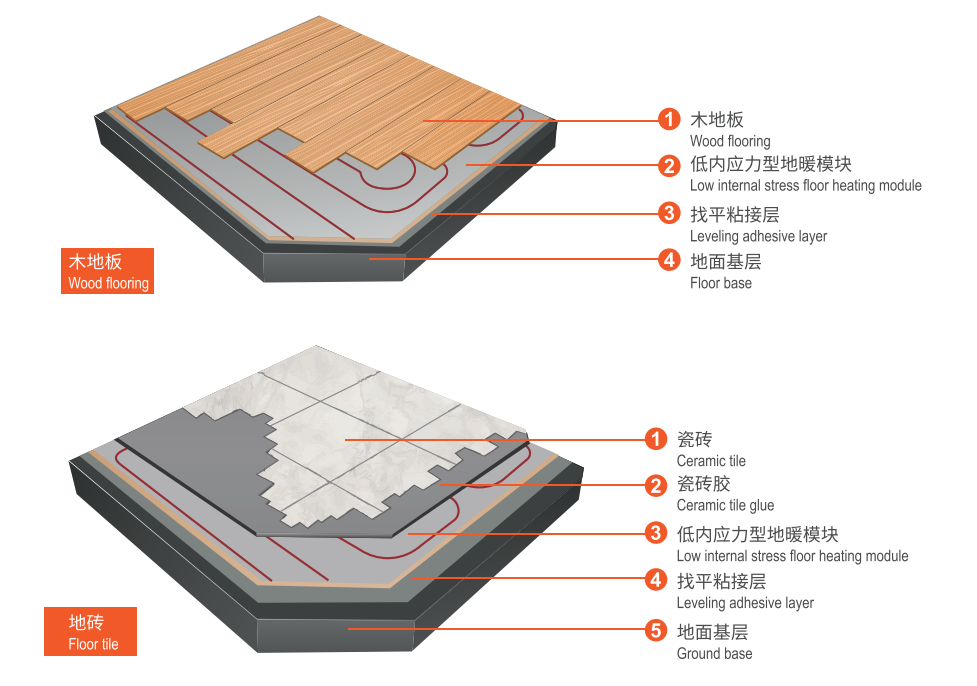

The product is made of high strength fluoride-free, bromin-free and low internal stress extruded (XPS) insulation board developed by the company as the main material, with a soaking layer attached to the surface. The module is prefabricated in the factory according to the in-depth plan of the drawing and assembled on site. The surface of the module is provided with a fixed distance Ω groove for laying heating pipes.
| Brand | SOHO | Material | XPS |
| Type | Dry underfloor heating module | ||
| Flame retardant rating | B1 B2 | ||
| Compressive strength Kpa | 200 | ||
| 350 | |||
| 500 | |||
| 700 | |||
| 1000 | |||
| water absorption | ≤1%（v/v） | ||
| Thermal conductivity index | ≤0.03%w（mk） | ||
| Product specifications mm(customizable) | Length | Breadth | Thickness |
| 1200 | 600 | 30 | |
| 2400 | 35 | ||
| 40 | |||
| 50 | |||
| Surface | Aluminum; foil; Cut; Peel; With skin | ||
1. Meet the policy requirements, "prefabricated evaluation standard +6 points"
2. It is not easy to leak, with the decoration, the pipeline is embedded in the groove, and is fully protected.

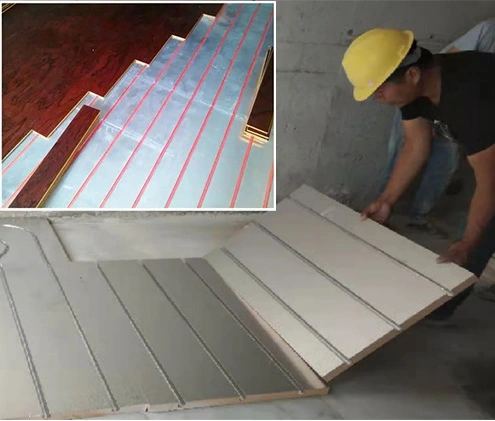

3. Fast construction, simple construction steps, shorten the construction period.
4. Easy maintenance, open local floor, floor tile can be repaired.
5. Reduce 50mm~70mm thick backfill bean stone concrete and leveling layer, reduce the structural load 120Kg/ ㎡.
6. Save height, save cost, cancel high-precision floor, reduce cost, improve the net height of the room.
7. Fast heating, reduce energy consumption, heat transfer directly in the aluminum plate heat dissipation layer, saving energy consumption of more than 25%.
8. Low carbon, environmental protection, improve the assembly rate to meet the needs of green building standards.
Heat Source
Equipped with a powerful home central heating function, it meets the heating needs of multi-bedroom families by achieving hot water circulation through its built-in water pump.
Manifold
Constructed primarily of copper, the manifold components allow for individual control of each circuit, enabling the adjustment of flow rate and temperature to achieve precise temperature control in every room.
Temperature Control
Intelligent temperature control is achieved through integrated design and software, making it a crucial component in the dry floor heating system for room-by-room temperature regulation.

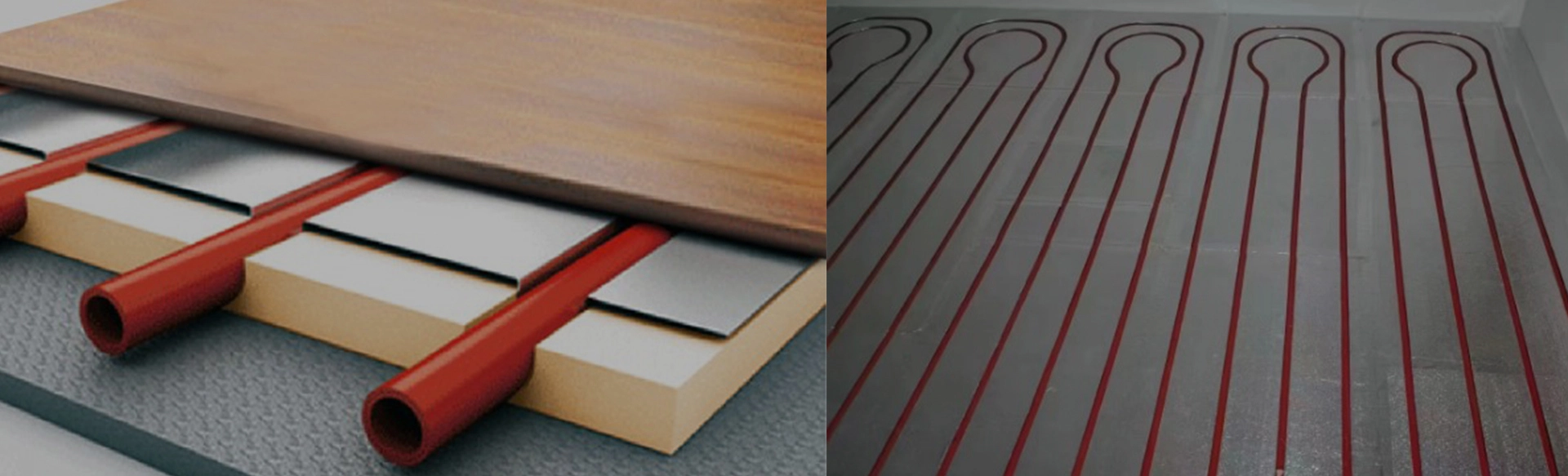

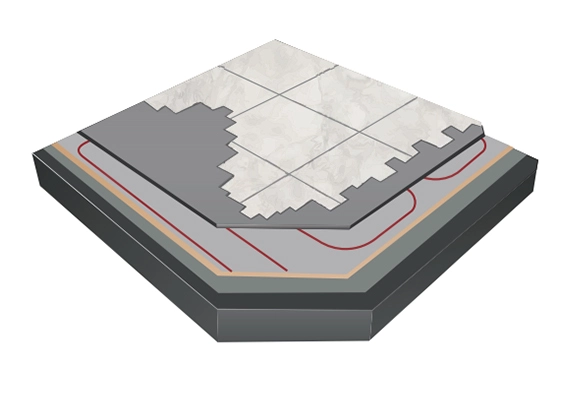

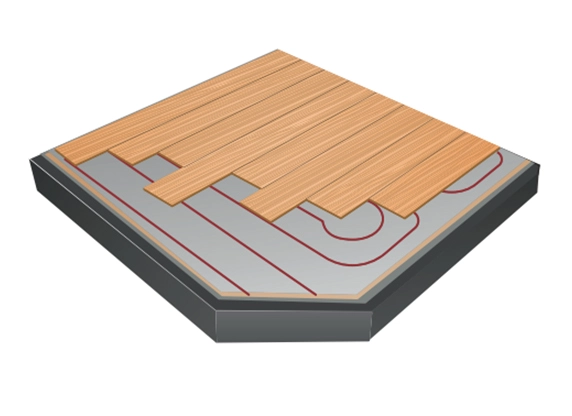

Floor Heating Surface

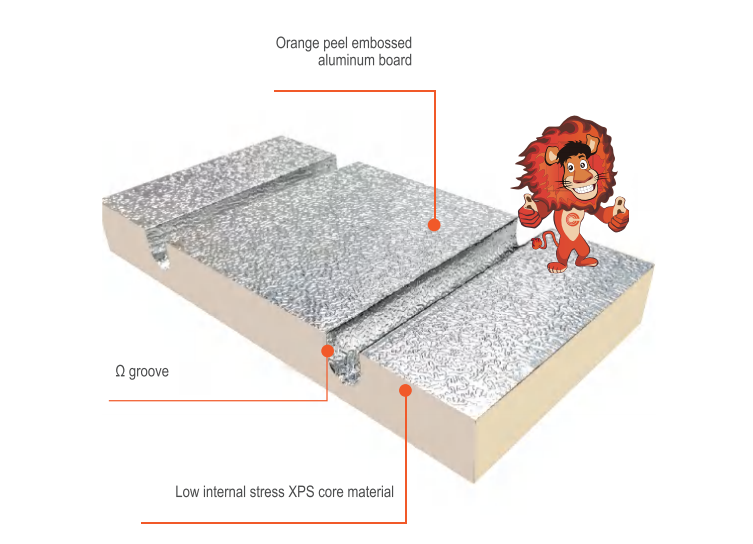

Using high-strength, fluorine-free, bromine-free, low internal stress extruded polystyrene (XPS) insulation board as the primary material, the surface is coated with an even heat distribution layer. The module surface features fixed-spacing Ω grooves designed for laying heating pipes. This serves as the core component of the floor heating system.
Looking for a reliable and efficient heating option for your floors? Consider dry underfloor heating systems. Our products include dry floor heating systems and dry underfloor heating options that are easy to install and maintenance-free. With a focus on producing high-quality products, our dry underfloor heating systems offer superior energy efficiency and cost savings. Plus, dry underfloor heating cost is lower than traditional wet heating options, making it a smart choice for your home or business. Our line of dry underfloor heating systems is designed to be environmentally friendly, easy to install, and effective in providing evenly distributed heat. Choose dry underfloor heating systems for hassle-free operation and optimal indoor comfort. We also offer a range of wet underfloor heating system options if that is your preference. Choose our dry floor heating systems for your next project and experience the difference in quality and performance.
If you want to know more about our products, please leave a message or give us a call and we will get back to you as soon as possible.
